GRAPHALLOY® Type 563
4 Bolt Flange Block with Cast Iron Housing


Shaft Sizes:  1/2 to 3-3/4 inches

These rugged cast iron units are commonly used in dampers, conveyors, plating tanks and other tough environments.

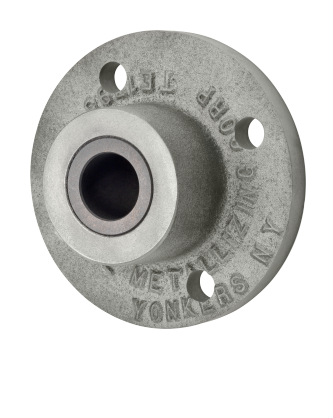

GRAPHALLOY 563 Flange Block
GRAPHALLOY 563 Flange Block

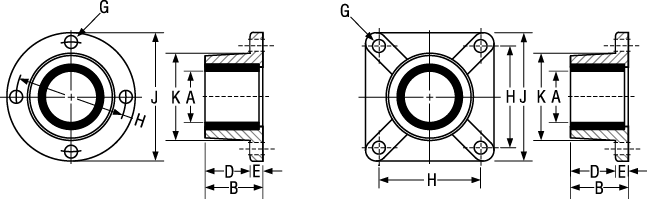

Letters on columns below refer to dimensions on illustrations.

Part Number
Shaft OD
Bolt Size

A
B
D
E
G
H
J
K
563-1808
1/2
1-5/8
1-1/8
1/2
3/8
3
4
2-1/16
563-1810
5/8
1-5/8
1-1/8
1/2
3/8
3
4
2-1/16
563-1812
3/4
1-5/8
1-1/8
1/2
3/8
3
4
2-1/16
563-2415
15/16
2
1-1/2
1/2
1/2
3-5/8
4-3/4
2-7/16
563-2416
1
2
1-1/2
1/2
1/2
3-5/8
4-3/4
2-7/16
563-2818
1-1/8
2-1/2
2
1/2
1/2
3-5/8
4-3/4
2-7/16
563-2819
1-3/16
2-1/2
2
1/2
1/2
3-5/8
4-3/4
2-7/16
563-2820
1-1/4
2-1/2
2
1/2
1/2
3-5/8
4-3/4
2-7/16
563-3222
1-3/8
3
2-1/2
1/2
1/2
4-1/8
5-3/8
2-15/16
563-3223
1-7/16
3
2-1/2
1/2
1/2
4-1/8
5-3/8
2-15/16
563-3224
1-1/2
3
2-1/2
1/2
1/2
4-1/8
5-3/8
2-15/16
563-3627
1-11/16
3-1/2
2-7/8
5/8
5/8
5-1/4
6-3/4
3-13/16
563-3628
1-3/4
3-1/2
2-7/8
5/8
5/8
5-1/4
6-3/4
3-13/16
563-4239
1-13/16
4
3-3/8
5/8
5/8
5-1/4
6-3/4
3-13/16
563-4331
1-15/16
4
3-3/8
5/8
5/8
5-1/4
6-3/4
3-13/16
563-4332
2
4
3-3/8
5/8
5/8
5-1/4
6-3/4
3-13/16
Shaft sizes below incorporate a four-bolt SQUARE flange block
563-4835
2-3/16
2-1/4
1-3/4
1/2
1/2
4-1/8*
5-3/8
4
563-4836
2-1/4
2-1/4
1-3/4
1/2
1/2
4-1/8*
5-3/8
4
563-5239
2-7/16
2-1/4
1-3/4
1/2
1/2
4-1/8*
5-3/8
4
563-5240
2-1/2
2-1/4
1-3/4
1/2
1/2
4-1/8*
5-3/8
4
563-6447
2-15/16
3-3/8
2-9/16
13/16
5/8
5-1/8*
6-3/8
5-1/2
563-6448
3
3-3/8
2-9/16
13/16
5/8
5-1/8*
6-3/8
5-1/2
563-6855
3-7/16
3-3/8
2-9/16
13/16
5/8
5-1/8*
6-3/8
5-1/2
563-6856
3-1/2
3-3/8
2-9/16
13/16
5/8
5-1/8*
6-3/8
5-1/2
563-7260
3-3/4
3-3/8
2-9/16
13/16
5/8
5-1/8*
6-3/8
5-1/2
*Bolt center to adjacent bolt center, not bolt circle
