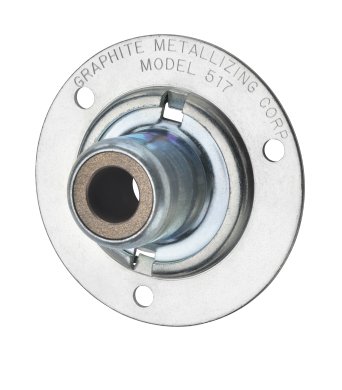

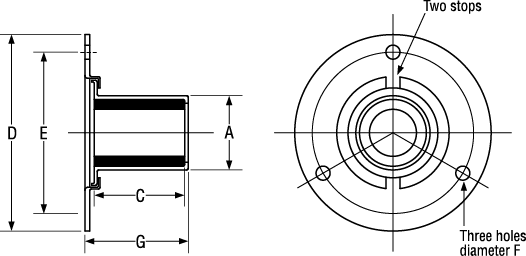

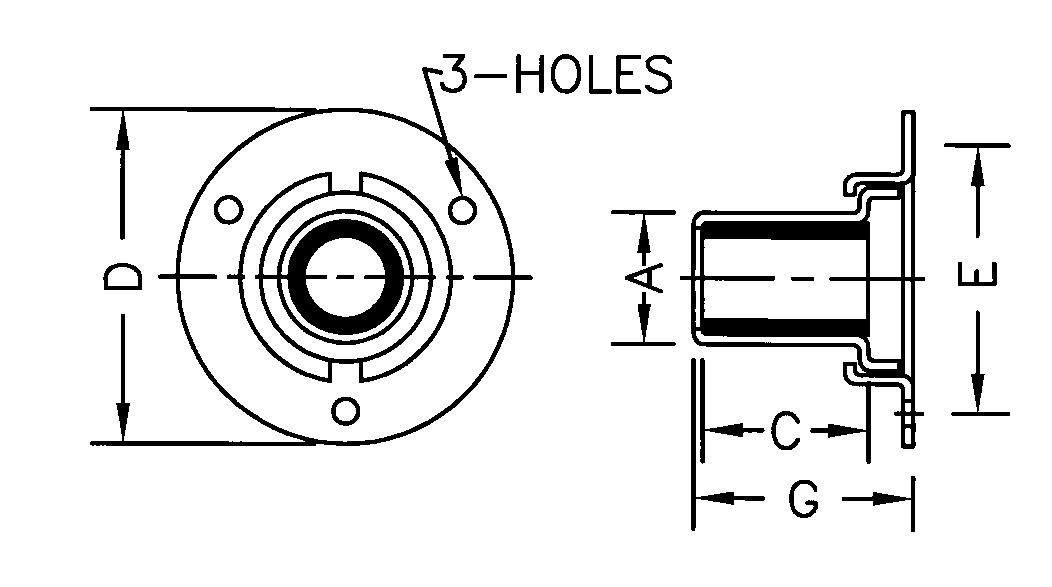

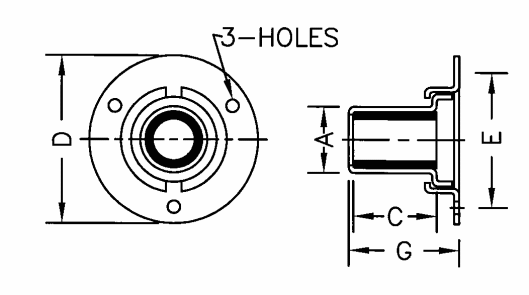

GRAPHALLOY® Type 517
|
Part Number | Shaft OD |
Case OD |
Bushing Length |
Flange OD |
Flange BC |
Hole Diameter |
Overall Length |
A |
C |
D |
E |
F |
G |
||
517-1808 |
1/2 |
1-5/16 |
1-1/4 |
3-1/2 |
2-7/8 |
1/4 |
1-9/16 |
517-1810 |
5/8 |
1-5/16 |
1-1/4 |
3-1/2 |
2-7/8 |
1/4 |
1-9/16 |
517-1812 |
3/4 |
1-5/16 |
1-1/4 |
3-1/2 |
2-7/8 |
1/4 |
1-9/16 |
517-2215 |
15/16 |
1-9/16 |
1-1/2 |
3-1/2 |
2-7/8 |
3/8 |
1-13/16 |
517-2216 |
1 |
1-9/16 |
1-1/2 |
3-1/2 |
2-7/8 |
3/8 |
1-13/16 |
517-3219 |
1-3/16 |
2-1/4 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-3220 |
1-1/4 |
2-1/4 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-3221 |
1-5/16 |
2-1/4 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-3223 |
1-7/16 |
2-1/4 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-3224 |
1-1/2 |
2-1/4 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-4227 |
1-11/16 |
2-15/16 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-4228 |
1-3/4 |
2-15/16 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-4231 |
1-15/16 |
2-15/16 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-4132 |
2 |
2-15/16 |
2-1/4 |
5-1/4 |
4-1/2 |
3/8 |
2-9/16 |
517-5235 |
2-3/16 |
3-1/2 |
2-1/2 |
5-5/16 |
5-1/4 |
3/8 |
2-13/16 |
517-5236 |
2-1/4 |
3-1/2 |
2-1/2 |
5-5/16 |
5-1/4 |
3/8 |
2-13/16 |
517-5238 |
2-3/8 |
3-1/2 |
2-1/2 |
5-5/16 |
5-1/4 |
3/8 |
2-13/16 |
517-5239 |
2-7/16 |
3-1/2 |
2-1/2 |
5-5/16 |
5-1/4 |
3/8 |
2-13/16 |
517-5240 |
2-1/2 |
3-1/2 |
2-1/2 |
5-5/16 |
5-1/4 |
3/8 |
2-13/16 |
Part Number | Shaft OD |
Case OD |
Bushing Length |
Flange OD |
Flange BC |
Hole Diameter |
Overall Length |
A |
C |
D |
E |
F |
G |
||
517-1808 |
12.70 |
33.34 |
31.75 |
88.90 |
73.03 |
6.35 |
39.69 |
517-1810 |
15.88 |
33.34 |
31.75 |
88.90 |
73.03 |
6.35 |
39.69 |
517-1812 |
19.05 |
33.34 |
31.75 |
88.90 |
73.03 |
6.35 |
39.69 |
517-2215 |
23.81 |
39.69 |
38.10 |
88.90 |
73.03 |
9.53 |
46.04 |
517-2216 |
25.40 |
39.69 |
38.10 |
88.90 |
73.03 |
9.53 |
46.04 |
517-3219 |
30.16 |
57.15 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-3220 |
31.75 |
57.15 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-3221 |
33.34 |
57.15 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-3223 |
36.51 |
57.15 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-3224 |
38.10 |
57.15 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-4227 |
42.86 |
74.61 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-4228 |
44.45 |
74.61 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-4231 |
49.21 |
74.61 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-4132 |
50.80 |
74.61 |
57.15 |
133.35 |
114.30 |
9.53 |
65.09 |
517-5235 |
55.56 |
88.90 |
63.50 |
134.94 |
133.35 |
9.53 |
71.44 |
517-5236 |
57.15 |
88.90 |
63.50 |
134.94 |
133.35 |
9.53 |
71.44 |
517-5238 |
60.32 |
88.90 |
63.50 |
134.94 |
133.35 |
9.53 |
71.44 |
517-5239 |
61.91 |
88.90 |
63.50 |
134.94 |
133.35 |
9.53 |
71.44 |
517-5240 |
63.50 |
88.90 |
63.50 |
134.94 |
133.35 |
3/8 |
71.44 |
