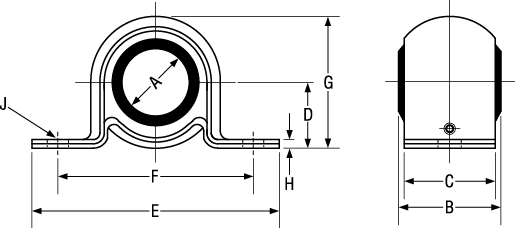

GRAPHALLOY® Type 327
|
Part Number |
Shaft O.D. A |
B | C | D | E | F | G | H | J |
327-3208 | 1/2 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3209 | 9/16 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3210 | 5/8 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3212 | 3/4 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3214 | 7/8 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3215 | 15/16 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3216 | 1 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3217 | 1-1/16 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3218 | 1-1/8 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3219 | 1-3/16 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
327-3220 | 1-1/4 | 1-7/16 | 1-5/16 | 1-3/32 | 4-5/8 | 3-21/64 | 2-1/8 | 3/16 | 3/8x19/32 |
Part Number |
Shaft O.D. A |
B | C | D | E | F | G | H | J |
327-3208 | 12.70 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3209 | 14.29 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3210 | 15.88 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3212 | 19.05 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3214 | 22.23 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3215 | 23.81 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3216 | 25.40 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3217 | 26.99 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3218 | 28.58 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3219 | 30.16 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
327-3220 | 31.75 | 36.51 | 33.34 | 27.78 | 117.48 | 84.53 | 53.98 | 4.76 | 9.53x15.08 |
Regular Profile 327 (Center Line Height=1-11/32)
Part Number |
Shaft O.D. A |
B | C | D | E | F | G | H | J |
327-4008 | 1/2 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4010 | 5/8 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4012 | 3/4 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4014 | 7/8 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4016 | 1 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4017 | 1-1/16 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4018 | 1-1/8 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4019 | 1-3/16 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4020 | 1-1/4 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4021 | 1-5/16 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4022 | 1-3/8 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4023 | 1-7/16 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
327-4024 | 1-1/2 | 1-11/16 | 1-7/16 | 1-11/32 | 5-1/4 | 3-7/8 | 2-11/16 | 1/4 | 13/32x3/4 |
Part Number |
Shaft O.D. A |
B | C | D | E | F | G | H | J |
327-4008 | 12.70 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4010 | 15.88 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4012 | 19.05 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4014 | 22.23 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4016 | 25.40 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4017 | 26.99 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4018 | 28.58 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4019 | 30.16 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4020 | 31.75 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4021 | 33.34 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4022 | 34.93 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4023 | 36.51 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
327-4024 | 38.10 | 42.86 | 36.51 | 34.13 | 133.35 | 98.42 | 68.26 | 6.35 | 10.31x19.05 |
