GRAPHALLOY® Type 318

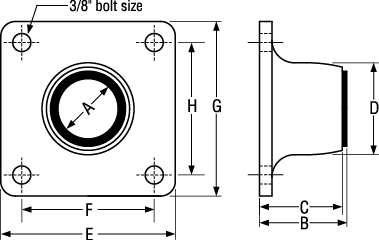

4 BOLT SELF-ALIGNING FLANGE BLOCK

Stainless Steel Housing (304): shaft sizes ½ to 1½

These stainless steel flange blocks are commonly used in dampers, louvers, and shutter installations.  The stainless steel housing makes these flange blocks ideal for wash down and other harsh applications.


Metric shaft sizes and FDA accepted bushing grades are available.  Replacement inserts are sold separately.

Part Number
Shaft O.D.
A
 B C D E F G H
318-08 1/2 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-10 5/8 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-12 3/4 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-14 7/8 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-16 1 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-17 1-1/16 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-18 1-1/8 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-19 1-3/16 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-20 1-1/4 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-21 1-5/16 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-22 1-3/8 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-23 1-7/16 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4
318-24 1-1/2 1-13/16 1-23/32 2-11/16 3-5/8 2-3/4 3-5/8 2-3/4

Part Number
Shaft O.D.
A
 B C D E F G H
318-08 12.70 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-10 15.88 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-12 19.05 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-14 22.23 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-16 25.40 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-17 26.99 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-18 28.58 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-19 30.16 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-20 31.75 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-21 33.34 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-22 34.93 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-23 36.51 46.04 43.66 68.26 92.08 69.85 92.08 69.85
318-24 38.10 46.04 43.66 68.26 92.08 69.85 92.08 69.85
