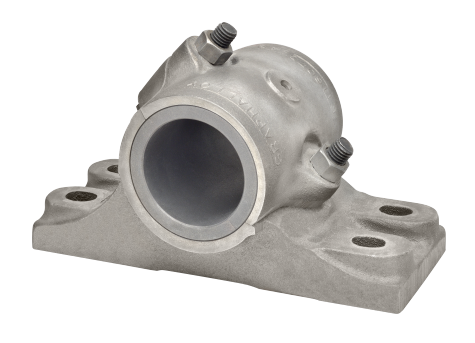

GRAPHALLOY® Type 163S
4 BOLT SPLIT ANGLE PILLOW
BLOCK
Cast Iron: Shaft sizes 2 3/16 to 5 15/16"
These split pillow blocks provide for ease of
bushing replacement. Typical applications
are drag line and other high temperature conveyors, ovens and
other process equipment.
|

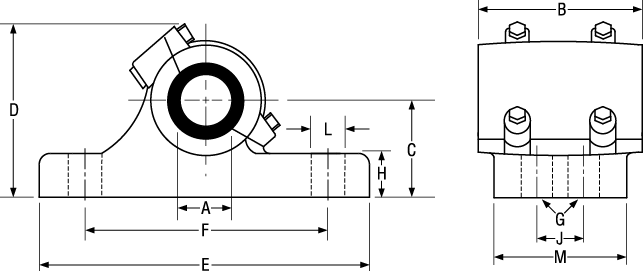

Part Number |
Shaft
OD |
|
|
|
|
|
Bolt Size |
|
|
|
|
|
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
M |
|
163S-4835 |
2-3/16 |
4-1/2 |
2-1/2 |
4-7/8 |
8-1/2 |
6-3/4 |
1/2 |
1 |
1-3/4 |
3/4 |
3-1/2 |
|
163S-5039 |
2-7/16 |
5 |
2-3/4 |
5-5/16 |
10-1/4 |
8 |
5/8 |
1-1/8 |
2 |
1 |
4 |
| 163S-5040 |
2-1/2 |
5 |
2-3/4 |
5-5/16 |
10-1/4 |
8 |
5/8 |
1-1/8 |
2 |
1 |
4 |
| 163S-6044 |
2-3/4 |
6 |
3-1/4 |
6-3/8 |
11 |
8-3/4 |
5/8 |
1-3/8 |
2-1/2 |
1 |
4-1/2 |
| 163S-6047 |
2-15/16 |
6 |
3-1/4 |
6-3/8 |
11 |
8-3/4 |
5/8 |
1-3/8 |
2-1/2 |
1 |
4-1/2 |
|
163S-6048 |
3 |
6 |
3-1/4 |
6-3/8 |
11 |
8-3/4 |
5/8 |
1-3/8 |
2-1/2 |
1 |
4-1/2 |
| Shaft sizes above incorporate a 2-bolt cap — Shaft sizes below incorporate a 4-bolt cap |
|
163S-6855 |
3-7/16 |
7 |
3-1/2 |
7-1/8 |
13 |
10-1/2 |
3/4 |
1-1/2 |
2-3/4 |
1-1/4 |
5 |
| 163S-6856 |
3-1/2 |
7 |
3-1/2 |
7-1/8 |
13 |
10-1/2 |
3/4 |
1-1/2 |
2-3/4 |
1-1/4 |
5 |
| 163S-7863 |
3-15/16 |
8 |
3-3/4 |
8-1/4 |
14-3/4 |
12 |
3/4 |
1-5/8 |
3 |
1-3/8 |
5-1/2 |
|
163S-8871 |
4-7/16 |
9 |
4-1/8 |
8-7/8 |
16-1/2 |
13-1/2 |
7/8 |
1-3/4 |
3-1/2 |
1-1/2 |
6-1/4 |
| 163S-9679 |
4-15/16 |
9 |
4-1/2 |
9-3/4 |
18 |
15 |
7/8 |
1-7/8 |
4 |
1-5/8 |
7 |
| 163S-10487 |
5-7/16 |
9 |
5 |
10-13/16 |
19-3/4 |
15-3/4 |
1 |
2 |
4-1/2 |
1-3/4 |
7-3/4 |
| 163S-11295 |
5-15/16 |
9 |
5-1/2 |
11-5/16 |
20-1/2 |
16-1/2 |
1-1/8 |
2-1/8 |
5 |
1-7/8 |
8-1/2 |
|
Part Number |
Shaft
OD |
|
|
|
|
|
Bolt Size |
|
|
|
|
|
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
L |
M |
|
163S-4835 |
55.56 |
114.30 |
63.50 |
123.83 |
215.90 |
171.45 |
12.70 |
25.40 |
44.45 |
19.05 |
88.90 |
|
163S-5039 |
61.91 |
127.00 |
69.85 |
134.94 |
260.35 |
203.20 |
15.88 |
28.58 |
50.80 |
25.40 |
114.30 |
| 163S-5040 |
63.50 |
127.00 |
69.85 |
134.94 |
260.35 |
203.20 |
15.88 |
28.58 |
50.80 |
25.40 |
114.30 |
| 163S-6044 |
69.85 |
152.40 |
82.55 |
161.93 |
279.40 |
222.25 |
15.88 |
34.93 |
63.50 |
25.40 |
114.30 |
| 163S-6047 |
74.61 |
152.40 |
82.55 |
161.93 |
279.40 |
222.25 |
15.88 |
34.93 |
63.50 |
25.40 |
114.30 |
|
163S-6048 |
76.20 |
152.40 |
82.55 |
161.93 |
279.40 |
222.25 |
15.88 |
34.93 |
63.50 |
25.40 |
114.30 |
| Shaft sizes above incorporate a 2-bolt cap — Shaft sizes below incorporate a 4-bolt cap |
|
163S-6855 |
87.31 |
177.80 |
88.90 |
180.98 |
330.20 |
266.70 |
19.05 |
38.10 |
69.85 |
31.75 |
127.00 |
| 163S-6856 |
88.90 |
177.80 |
88.90 |
180.98 |
330.20 |
266.70 |
19.05 |
38.10 |
69.85 |
31.75 |
127.00 |
| 163S-7863 |
100.01 |
203.20 |
95.25 |
209.55 |
374.65 |
304.80 |
19.05 |
41.28 |
76.20 |
34.93 |
139.70 |
|
163S-8871 |
112.71 |
228.60 |
104.78 |
225.43 |
419.10 |
342.90 |
22.23 |
44.45 |
88.90 |
38.10 |
158.75 |
| 163S-9679 |
125.41 |
228.60 |
114.30 |
247.65 |
457.20 |
381.00 |
22.23 |
47.63 |
101.60 |
41.28 |
177.80 |
| 163S-10487 |
138.11 |
228.60 |
127.00 |
274.64 |
501.65 |
400.05 |
25.40 |
50.80 |
114.30 |
44.45 |
196.85 |
| 163S-11295 |
5-15/16 |
228.60 |
139.70 |
287.34 |
520.70 |
419.10 |
28.58 |
53.98 |
127.00 |
47.63 |
215.90 |
Selected sizes are available with horizontally split housings.
Split Cap has two bolts for shaft diameters up to 3 inches.
Split Cap has four bolts for shaft diameters above 3 inches.
Feb. 20, 2020
|
