SOLUTIONS FOR TOUGH BEARING PROBLEMS

GRAPHALLOY®
TYPE 117 STANDARD
GENERAL PURPOSE BUSHINGS



A complete size range of standard "off the shelf" solutions. These self lubricating bushings provide maintenance free service in temperatures to 1000° F (535° C). Available in grades for low and high temperatures and in FDA accepted grades.

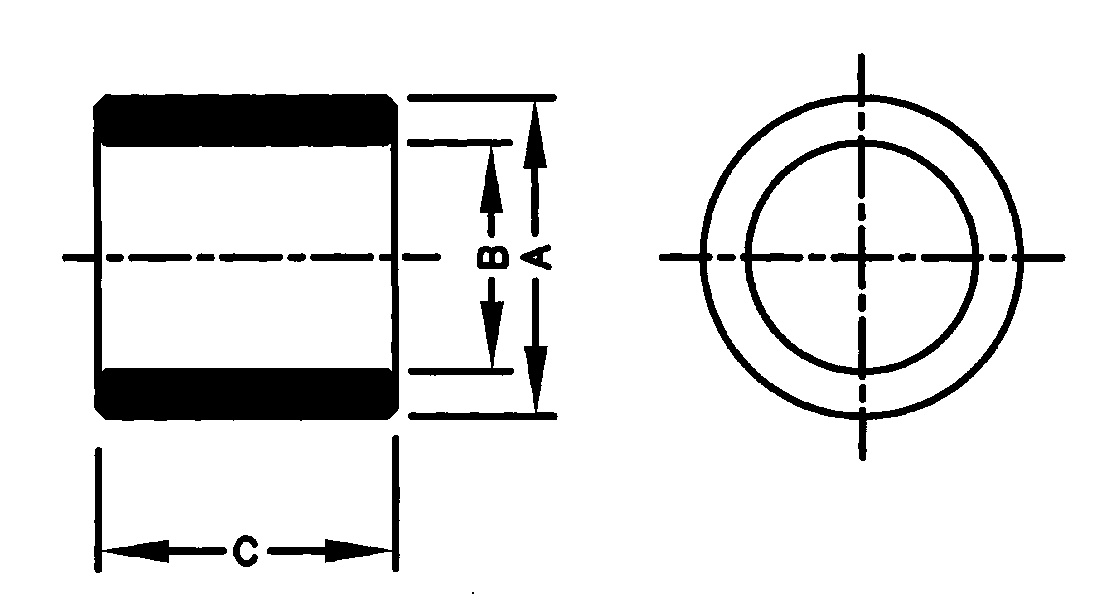

The sizes shown below are for general purpose applications. The final dimensions and tolerances will vary slightly with the temperature of the application and grade selected. The actual OD of the bushing will include allowance for a suitable press fit into a cast iron or steel housing of the size shown. The actual ID will include allowance for running clearance suitable for moderate speeds.

Dimensions below are in inches. Metric and custom sizes are also available.

To determine which grade (xxx) is right for your application, please contact one of our engineers at sales@graphalloy.com or 914-968-8400.

Bushing No. & Grade

Shaft OD

Housing ID

Bushing Length
Nominal
Decimal
Nominal
Decimal

117-2-XXX

1/8

.125
.124

3/8

.375
.374

1/4

117-3-XXX

3/16

.1875
.1865

7/16

.4375
.4365

1/4

117-4-XXX

1/4

.250
.249

1/2

.500
.499

1/4

117-5-XXX

5/16

.3125
.3115

9/16

.5625
.5615

3/8

117-6-XXX

3/8

.375
.374

5/8

.625
.624

3/8

117-7-XXX

7/16

.4375
.4365

11/16

.6875
.6865

1/2

117-8-XXX

1/2

.500
.499

7/8

.875
.874

5/8

117-9-XXX

9/16

.5625
.5615

15/16

.9375
.9365

5/8

117-10-XXX

5/8

.625
.624

1

1.000
.999

7/8

117-11-XXX

11/16

.6875
.6865

1-1/16

1.0625
1.0605

1

117-12-XXX

3/4

.750
.749

1-1/8

1.125
1.123

1-1/4

117-13-XXX

13/16

.8125
.8115

1-3/16

1.1875
1.1855

1-1/4

117-14-XXX

7/8

.875
.874

1-1/4

1.250
1.248

1-3/8

117-15-XXX

15/16

.9375
.9365

1-5/16

1.3125
1.3105

1-3/8

117-16-XXX

1

1.000
.999

1-3/8

1.375
1.373

1-1/2

117-18-XXX

1-1/8

1.125
1.124

1-5/8

1.625
1.623

1-3/4

117-19-XXX

1-3/16

1.1875
1.1865

1-11/16

1.6875
1.6855

1-7/8

117-20-XXX

1-1/4

1.250
1.249

1-3/4

1.750
1.748

1-7/8

117-22-XXX

1-3/8

1.375
1.374

1-7/8

1.875
1.873

2

117-23-XXX

1-7/16

1.4375
1.4365

1-15/16

1.9375
1.9355

2-1/4

117-24-XXX

1-1/2

1.500
1.498

2

2.000
1.998

2-1/4

117-26-XXX

1-5/8

1.625
1.623

2-1/8

2.125
2.123

2-1/2

117-27-XXX

1-11/16

1.6875
1.6855

2-3/16

2.1875
2.1855

2-5/8

117-28-XXX

1-3/4

1.750
1.748

2-1/4

2.250
2.248

2-5/8

117-30-XXX

1-7/8

1.875
1.873

2-3/8

2.375
2.373

2-3/4

117-31-XXX

1-15/16

1.9375
1.9355

2-9/16

2.5625
2.5605

3

117-32-XXX

2

2.000
1.998

2-5/8

2.625
2.623

3

117-35-XXX

2-3/16

2.1875
2.1855

2-13/16

2.8125
2.8105

3-1/4

Bushing No. & Grade

Shaft OD

Housing ID

Bushing Length
Nominal
Decimal
Nominal
Decimal

117-2-XXX

 3.18 3.18
3.15		 9.53 9.53
9.50

6.35

117-3-XXX

 4.76 4.76
4.74		 11.11 11.11
11.09

6.35

117-4-XXX

 6.35 6.35
6.32		 12.70 12.70
12.67

6.35

117-5-XXX

 7.94 7.93
7.91		 14.29 14.29
14.26

9.53

117-6-XXX

 9.53 9.53
9.50		 15.88 15.88
15.85

9.53

117-7-XXX

 11.11 11.11
11.09		 17.46 17.46
17.44

12.70

117-8-XXX

 12.70 12.70
12.67		 22.23 22.23
22.20

15.88

117-9-XXX

 14.29 14.29
14.26		 23.81 23.81
23.79

15.88

117-10-XXX

 15.88 15.88
15.85		 25.40 25.40
25.37

22.23

117-11-XXX

 17.46 17.46
17.44		 26.99 26.99
26.94

25.40

117-12-XXX

 19.05 19.05
19.02		 28.58 28.58
28.52

31.75

117-13-XXX

 20.64 20.64
20.61		 30.16 30.16
30.11

31.75

117-14-XXX

 22.23 22.23
22.20		 31.75 31.75
31.70

34.93

117-15-XXX

 23.81 23.81
23.79		 33.34 33.34
33.29

34.93

117-16-XXX

 25.40 25.40
25.37		 34.93 34.93
34.87

38.10

117-18-XXX

 28.58 28.58
28.55		 41.28 41.28
41.22

44.45

117-19-XXX

 30.16 30.16
30.14		 42.86 42.86
42.81

47.63

117-20-XXX

 31.75 31.75
31.72		 44.45 44.45
44.40

47.63

117-22-XXX

 34.93 34.93
34.90		 47.63 47.63
47.57

50.80

117-23-XXX

 36.51 36.51
36.49		 49.21 49.21
49.16

57.15

117-24-XXX

 38.10 38.10
38.05		 50.80 50.80
50.75

57.15

117-26-XXX

 41.28 41.28
41.22		 53.98 53.98
53.92

63.50

117-27-XXX

 42.86 42.86
42.81		 55.56 55.56
55.51

66.68

117-28-XXX

 44.45 44.45
44.40		 57.15 57.15
57.10

66.68

117-30-XXX

 47.63 47.63
47.57		 60.33 60.33
60.27

69.85

117-31-XXX

 49.21 49.21
49.16		 65.09 65.09
65.04

76.20

117-32-XXX

 50.80 50.80
50.75		 66.68 66.68
66.62

76.20

117-35-XXX

 55.56 55.56
55.51		 71.43 71.43
71.39

82.55


XXX = material grade designation. Our engineers will select the grade based upon your application. Contact us at sales@graphalloy.com or 914-968-8400.
