GRAPHALLOY®
METRIC CAM FOLLOWERS
GRAPHALLOY now offers self-lubricating metric dimension cam followers for extreme environments
If you have problems with:
- temperatures to 750º F or more
- temperatures approaching -400º F
- caustic or acidic conditions
- areas that are difficult to lubricate
- wet or submerged applications where grease hardens or burns up
GRAPHALLOY metric cam followers can now be the solution!
To determine which grade is right for your application, please contact one of our engineers at sales@graphalloy.com or 914-968-8400.

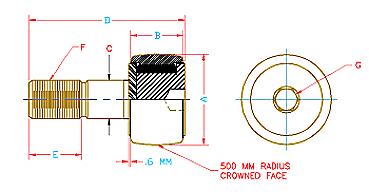

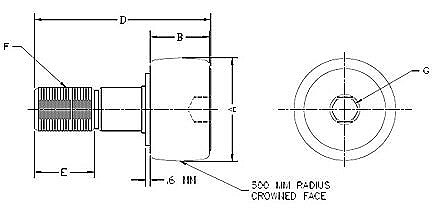

| CAM FOLLOWER DIMENSIONS (Millimeters) | |||||||
|---|---|---|---|---|---|---|---|
| Part Number | A | B | C | D | E | F | G |
| Crowned OD |
Length | Stud Dia |
Overall Length |
Thread Length |
Thread Size |
Hex Size |
|
| 1217CH-M19 | 19 | 11 | 8 | 32 | 12.25 | M8x1.25 | 4 |
| 1217CH-M26 | 26 | 12 | 10 | 36 | 13.5 | M10x1 | 4 |
| 1217CH-M30 | 30 | 14 | 12 | 40 | 14.0 | M12x1.5 | 6 |
| 1217CH-M32 | 32 | 14 | 12 | 40 | 14.0 | M12x1.5 | 6 |
| 1217CH-M35 | 35 | 18 | 16 | 52 | 18.0 | M16x1.5 | 8 |
| 1217CH-M52 | 52 | 24 | 20 | 66 | 21.0 | M20x1.5 | 10 |
