GRAPHALLOY® Type 675
2 BOLT SELF-ALIGNING PILLOW BLOCK

Plated carbon steel housing: shaft sizes ½ to 1 ½ "



These pillow blocks are commonly used in dryer applications in the paper industry and can coating applications.

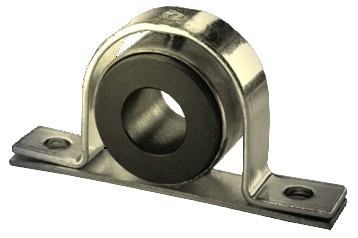

GRAPHALLOY 675 pillow block


GRAPHALLOY 675 pillow block

Metric shaft sizes and FDA accepted bushing grades are available. Replacement inserts are sold separately.

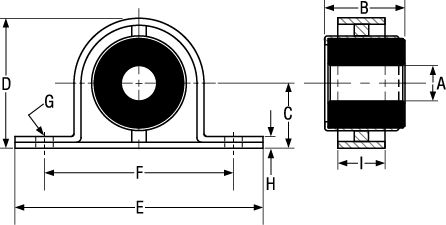

Part Number Shaft OD           Bolt Size
  A

B

  C

 D

  E F  G H  I

675-08

1/2

1-3/16

7/8

1-13/16

3-1/4

2-1/2

5/16

1/4

1

675-10

5/8

1-3/16

7/8

1-13/16

3-1/4

2-1/2

5/16

1/4

1

675-12

3/4

1-5/8

1-3/8

2-3/4

5-1/4

4

3/8

1/4

1

675-14

7/8

1-5/8

1-3/8

2-3/4

5-1/4

4

3/8

1/4

1

675-16

1

1-5/8

1-3/8

2-3/4

5-1/4

4

3/8

1/4

1

675-20

1-1/4

1-5/8

1-3/8

2-3/4

5-1/4

4

3/8

1/4

1

675-24

1-1/2

1-5/8

1-3/8

2-3/4

5-1/4

4

3/8

1/4

1
Part Number Shaft OD           Bolt Size
  A

B

  C

 D

  E F  G H  I

675-08

12.70

30.16

22.23

46.04

82.55

63.50

7.94

6.35

25.40

675-10

15.88

30.16

22.23

46.04

82,55

63.50

7.94

6.35

25.40

675-12

19.05

41.28

34.93

69.85

133.35

101.60

9.53

6.35

25.40

675-14

22.23

41.28

34.93

69.85

133.35

101.60

9.53

6.35

25.40

675-16

25.40

41.28

34.93

69.85

133.35

101.60

9.53

6.35

25.40

675-20

31.75

41.28

34.93

69.85

133.35

101.60

9.53

6.35

25.40

675-24

38.10

41.28

34.93

69.85

133.35

101.60

9.53

6.35

25.40
