SOLUTIONS FOR TOUGH BEARING PROBLEMS

GRAPHALLOY® Type 414 and Type 475
2 Bolt Self-Aligning Cast Iron Pillow Block

Shaft size 5/8 to 3 1/4"

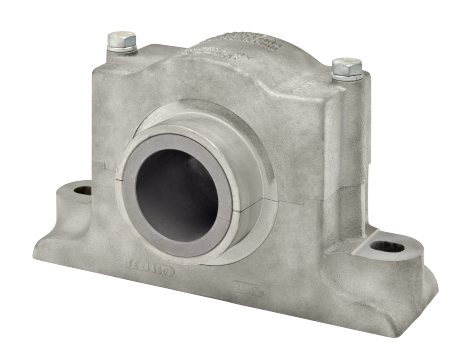

GRAPHALLOY 414 475 Pillow Block
GRAPHALLOY 414 475 Pillow Block

These self aligning pillow blocks are available with a split insert (type 414) and a solid insert (type 475).

Common applications include cement mills, heat treating ovens and traveling trash screens. Replacement inserts are available.

Specify 475 for solid insert or 414 for split insert

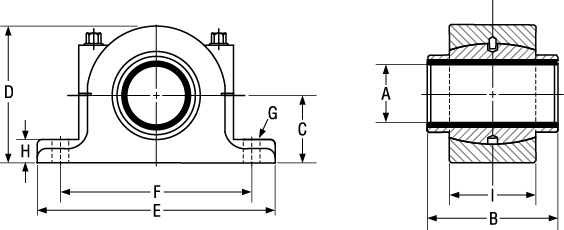

Part Number Standard Shaft Size   Bolt Size
  A B C D E F G H I
414/475-1810 5/8 1-5/8 1-1/2 3-1/8 6 4-3/4 1/2 15/32 1-3/8
414/475-2012 3/4 1-5/8 1-1/2 3-1/8 6 4-3/4 1/2 15/32 1-3/8
414/475-2415 15/16 2 1-1/2 3-1/8 6 4-3/4 1/2 15/32 1-3/8
414/475-2416 1 2 1-1/2 3-1/8 6 4-3/4 1/2 15/32 1-3/8
414/475-2618 1-1/8 2 1-1/2 3-1/8 6 4-3/4 1/2 15/32 1-3/8
414/475-3219 1-3/16 2-1/2 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-3220 1-1/4 2-1/2 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-3623 1-7/16 3 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-3624 1-1/2 3 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-4027 1-11/16 3-1/2 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-4028 1-3/4 3-1/2 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-4029 1-13/16 3-1/2 2-5/8 5-3/8 9 7-1/2 1/2 1-3/8 2-5/16
414/475-4431 1-15/16 4 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-4432 2 4 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-4434 2-1/8 4 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-4835 2-3/16 4-1/2 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-4836 2-1/4 4-1/2 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-5139 2-7/16 5 3-1/4 6-5/8 12 10 5/8 1-3/4 3-1/4
414/475-5442 2-5/8 5-1/2 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-5443 2-11/16 5-1/2 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-5845 2-13/16 6 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-5846 2-7/8 6 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-6447 2-15/16 7 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-6448 3 7 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-6451 3-3/16 7 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
414/475-6452 3-1/4 7 3-3/4 7-3/4 13-1/2 11-1/4 3/4 2 4
Part Number Standard Shaft Size   Bolt Size
  A B C D E F G H I
414/475-1810 15.88 41.28 38.10 79.38 152.40 120.65 12.70 11.91 34.93
414/475-2012 19.05 41.28 38.10 79.38 152.40 120.65 12.70 11.91 34.93
414/475-2415 23.81 50.80 38.10 79.38 152.40 120.65 12.70 11.91 34.93
414/475-2416 25.40 50.80 38.10 79.38 152.40 120.65 12.70 11.91 34.93
414/475-2618 28.58 50.80 38.10 79.38 152.40 120.65 12.70 11.91 34.93
414/475-3219 30.16 63.50 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-3220 31.75 63.50 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-3623 36.51 76.20 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-3624 38.10 76.20 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-4027 42.86 88.90 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-4028 44.45 88.90 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-4029 46.04 88.90 66.68 136.53 228.60 190.50 12.70 34.93 58.74
414/475-4431 49.21 101.60 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-4432 50.80 101.60 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-4434 53.98 101.60 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-4835 55.56 114.30 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-4836 57.15 114.30 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-5139 61.91 127.00 82.55 168.28 304.80 254.00 15.88 44.45 82.55
414/475-5442 66.68 139.70 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-5443 68.26 139.70 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-5845 71.44 152.40 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-5846 73.03 152.40 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-6447 74.61 177.80 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-6448 76.20 177.80 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-6451 80.96 177.80 95.25 196.85 342.90 285.75 19.05 50.80 101.60
414/475-6452 82.55 177.80 95.25 196.85 342.90 285.75 19.05 50.80 101.60
