GRAPHALLOY ® High Temperature Cam Followers



Cam Followers with GRAPHALLOY bushings outperform ordinary grease or oil lubricated cam followers for high temperature (+750°F), low temperature (-100°F and below) and submerged applications. Industrial oven doors, high temperature conveyors, and steel mill equipment are typical applications.

Graphalloy cam followers are self-lubricating and contain no oil or grease to harden, burn up, contaminate or wash away.  These cam followers can handle moderate loads and speeds.

Our stock cam followers are made to industry standard cam follower dimensions.  We can also supply metric (click here to link to metric cam follower page)  and other special designs.

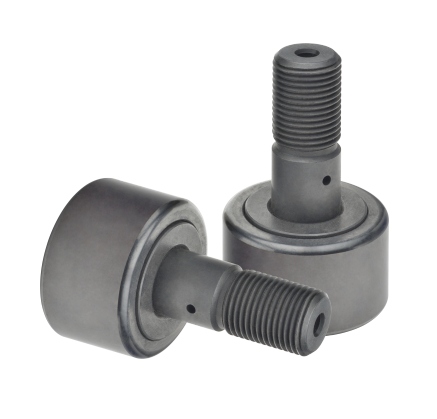

GRAPHALLOY high temperature cam followers

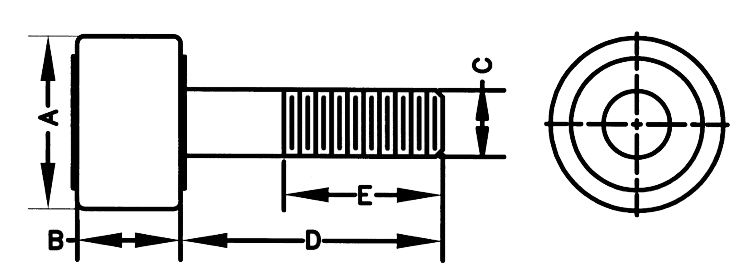

high temp cam follower diagram
To determine which grade is right for your application, contact one of our engineers: chat with us now, email or use our inquiry form

Cam Follower Dimensions

Part Number
Roller
Thread
Stud

O.D
A

Length
B

Dia
C

Thread Size
F

Length
E

Overall Length
D

1217-8

.500

.375

.190

10-32

1/4

5/8

1217-12

.750

.500

.375

3/8-24

3/8

7/8

1217-16

1.000

.625

.437

7/16-20

1/2

1

1217-20

1.250

.750

.500

1/2-20

5/8

1-1/4

1217-24

1.500

.875

.625

5/8-18

3/4

1-1/2

1217-28

1.750

1.000

.750

3/4-16

7/8

1-3/4

1217-32

2.000

1.250

.875

7/8-14

1

2

1217-40

2.500

1.500

1.000

1-14

1-1/8

2-1/4

1217-48

3.000

1.750

1.250

1-1/4-12

1-1/4

2-1/2

Part Number
Roller
Thread
Stud

O.D
A

Length
B

Dia
C

Thread Size (mm) & Threads per Inch
F

Length
E

Overall Length
D

1217-12

19.05

12.70

9.53

9.53-24

9.53

22.23

1217-16

25.40

15.88

11.10

11.11-20

12.70

25.40

1217-20

31.75

19.05

12.70

12.70-20

15.88

31.75

1217-24

38.10

22.23

15.88

15.88-18

19.05

38.10

1217-28

44.45

25.40

19.05

19.05-16

22.23

44.45

1217-32

50.80

31.75

22.23

22.23-14

25.40

50.80

1217-40

63.50

38.10

25.40

25.40-14

28.58

57.15

1217-48

76.20

44.45

31.75

31.75-12

31.75

63.50



Other sizes, including metric standard sizes, can be manufactured.  Slot head stocked.  Also available in yoke style and hex head.
